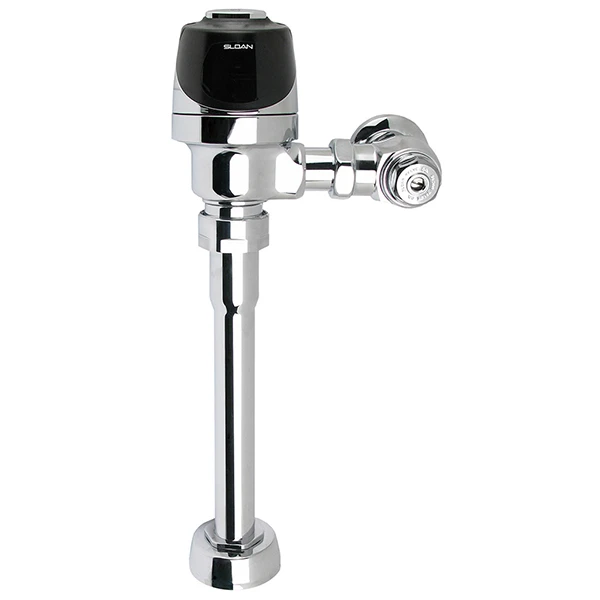

SLOAN 8180-1.5LHMC G2 1.5 GPF URINAL FLUSHOMETER

G2 Optima Plus 8180-1.5 gpf Sloan Flushometer.

This battery powered, sensor operated flushometer by Sloan is in the G2 Optima Plus series, Model 8180 with a 1.5 gpf low consumption flush cycle. This unit is very economical due to its water saver water efficiency, and years of battery operated metered flushing. The hands free technology make this unit hygienic. This unit is great for facilities that want to decrease water and energy usage through their building(s). This flushometer has a single flush mechanism with an exposed installation. This unit is designed for top spud wall mounted urinals. The unit features a sensor activation powered by battery. The infrared sensor has multiple-focused, high and low Lobular Sensing Fields that detect users. The unit also has an override push button located on top of the unit to serve as a manual push button courtesy flush. This G2 flushometer is powered with four AA alkaline batteries, which are included with the unit, and last for 3 years at a flush rate of 4,000 flushes per month. The unit also has two indicator lights, one for range adjustment, and another for low battery. This flushometer performs a sentinel flush automatically every 24 hours. High copper, low zinc brass castings for dezincification resistance. The unit is ADA compliant, has a limited 3 year manufacturer warrantee, and has a polished chrome finish over semi-red brass valve body material.

Specs:
• ADA Compliant Optima Plus Battery Powered Infrared Sensor for automatic “No Hands” operation.
• 24-hour “sentinel” automatic flush for improved hygiene.
• Gold-plated battery contacts for consistent electronic connections.
• User friendly three-second flush delay.
• “Courtesy Flush” Override Button
• Spud Coupling and Flange for 1¼” Top Spud
• Fixed Metering Bypass
• 1″ IPS Screwdriver Bak-Chek Angle Stop
• Vandal Resistant, Free Spinning Stop Cap
• Vacuum Breaker Flush Connection w/Hex Coupling Nut
• 1-1/4″ Vacuum Breaker
• Adjustable Tailpiece

EC Part Number: #08422
Mfg No.: 8180-1.5LHMC
Mfg: Sloan Valve Co
