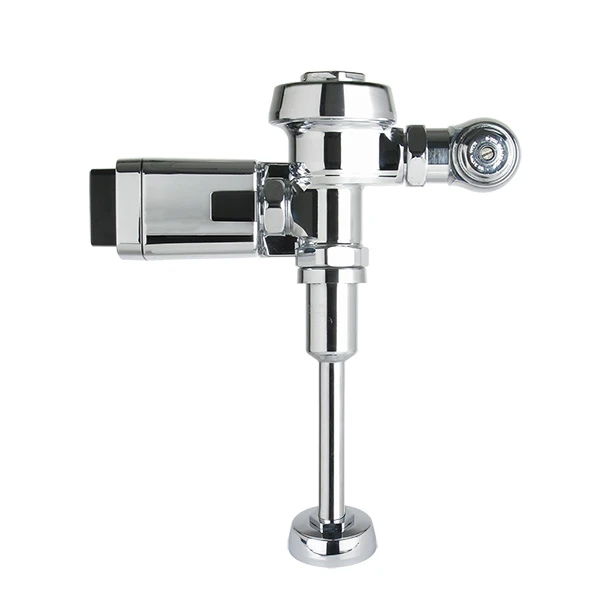

SLOAN 186-1.0SFSM ROYAL SINGLE FLUSH 1.0 GPF URINAL FLUSHOMETER

This Sloan Royal Flushometer is a sensor operated, 1.0 gpf / 3.8 Lpf single flush side mount operated flushometer designed for exposed use on top spud wall mounted urinal applications. The unit is considered low consumption as far as water efficiency, and works best in high traffic commercial applications. This unit features hands-free, sensor operation activated by multi-lobular infrared sensor that detects the user. The Smart Sense Technology™ this flushometer uses extended range and logic techniques to reduce water usage in certain situations. For example, when there is a continuous line of users, this unit will limit water usage to 2.5 gallons, no matter the length of the user line. There is a True Mechanical Override button on this unit to allow for manual operation when necessary. There is also a service mode that enables the flushometer sensor to be paused for ten minutes during servicing or cleaning. This unit is battery operated, and comes with 4 size C alkaline batteries which last 3 years at 3,000 flushes per month. Sloan product code number 3912745 Royal Flushometer.

Specs:
• For 3/4″ Top Spud Closets
• Smart Sense Technology™ features self-adaptive infrared sensor.
• Non-hold open user-initiated True Mechanical Override (TMO) Button

EC Part Number: #85611
Mfg No.: 186-1.0SFSM
Mfg: Sloan Valve Co
