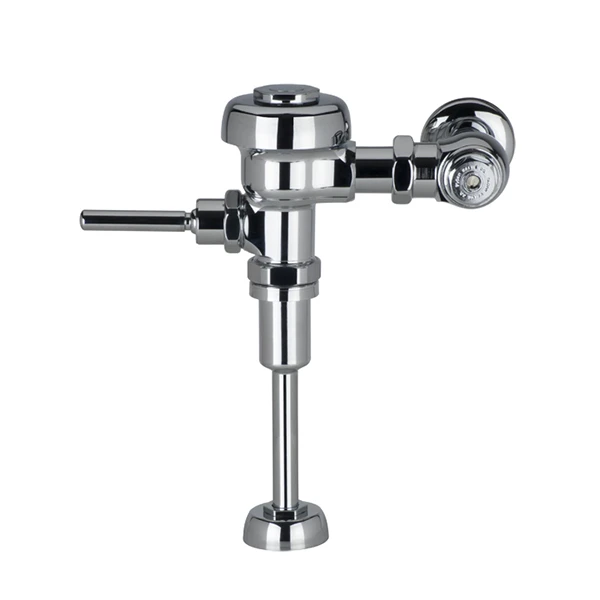

SLOAN 186.05XL REGAL 0.5 GPF URINAL FLUSHOMETER

This exposed flushometer by Sloan is for wall hung urinals. It is part of the Regal 186 product series, manufacturer number 3982628. It is a manual activation, single flush mechanism that functions with open handle lever on a spheroidal joint. The unit is ADA compliant. It is designed to be wall mounted. This Regal 186 series flushometer has a top spud fixture connection and diaphragm valve. The flush volume of this unit is 0.5 GPF, making this unit one of the most water efficient units available. The manual activation makes maintenance easy and the unit highly efficient. Like all other regal flushometers, this unit has an adjustable tailpiece, which enables it to accommodate +/- ½” difference in length between the centerline of the valve and the centerline of the water supply inlet. The 186 0.5 GPF Regal flushometer by Sloan has a polished chrome finish over its brass construction, ¾” top spud, 1-½” vacuum breaker, and 1″ stop.

Specs:
• 0.5 GPF
• 3/4″ Vacuum Breaker
• 3/4″ Stop

EC Part Number: #81296
Mfg No.: 186.05XL-Regal
Mfg: Sloan Valve Co
