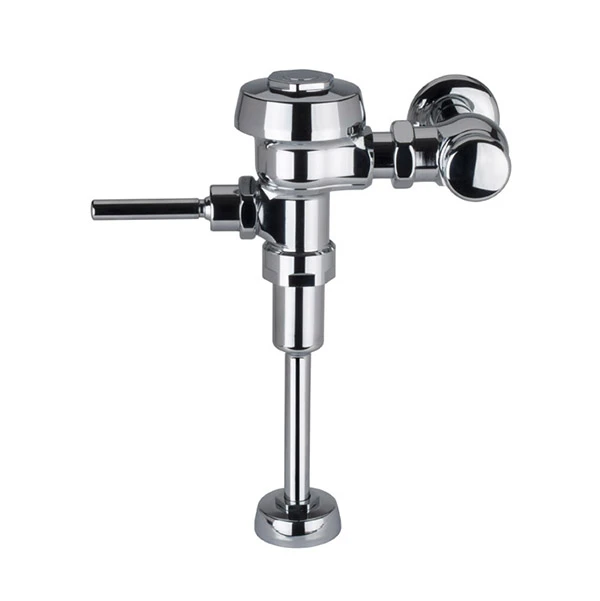

SLOAN 186-0.5 ROYAL 0.5 GPF URINAL FLUSHOMETER

This Sloan Flushometer is in the sloan 186 series and is a manual exposed flushometer designed for wall hung urinals. This unit has a flush volume of 0.5 gpf / 1.9 Lpf, making it a high efficiency flushometer. This 186 0.5 gpf single flush flushometer has manual activation with its ADA compliant metal oscillating non hold open handle. It has a diaphragm valve, and is designed for urinals with a top spud fixture connection. This material number 3782655 flushometer is constructed of semi-red brass and finished with polished chrome for a shiny, luster finish. According to the environmental protection agency, the current federal standard for commercial urinals is 1.0 gpf. By choosing 0.5 gpf urinals for your commercial setting, you will not only save more water, but also prepare your facility for the next federal standard regulation change.

Specs:
• 0.5 GPF
• 3/4″ Vacuum Breaker
• 3/4″ Stop

Features:
• Dual filtered by-pass, a development that will enable your flushometer to perform longer than ever before, even in water conditions with high contents of sand and other particulates.
• Diaphragm, handle packing, stop seat and vacuum breaker are molded from PERMEX rubber compound for chlorine resistance.
• ADA compliant metal oscillating non-hold open handle with triple seal handle packing.
• Free spinning vandal resistant stop cap (exposed installations).
• High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut.

EC Part Number: #08845
Mfg No.: 186-0.5
Mfg: Sloan Valve Co
