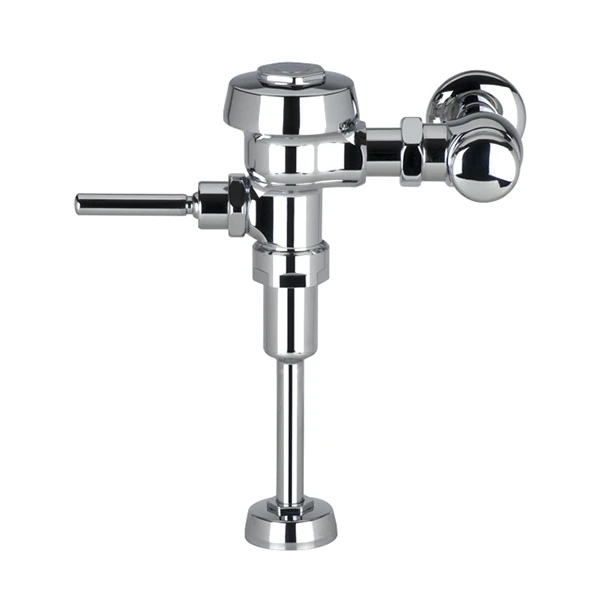

SLOAN 186-0.13 ROYAL 0.13 GPF URINAL FLUSHOMETER

The Sloan 186 Royal flushometer is a high efficiency, manual flushometer for ¾” top spud urinals. The unit is a quiet, exposed, and utilizes a dual linear filtered bypass diaphragm. This particular flushometer has a 0.125 GPH flush volume. A 0.125 flush volume is an incredibly low flush volume that is ideal for any setting where water conservancy is a priority. The manual single flush mechanism of the unit make it easy to maintain and service. The handle on this unit is non-hold, metal oscillated and therefore ADA compliant. It also has a fixed metering bypass, CID technology, and no external volume adjustment help to maintain the low flush volume. Optional finishes available: Polished Brass, Brushed Nickel, or Satin Chrome (specify during order). Unit also available with SaniGuard® Antimicrobial Coating on Handle or 3″ Metal Oscillating Push Button.

Specs:
• 0.125 GPF
• ¾” Vacuum Breaker
• Spud Coupling and Flange for ¾” Top Spud
• ¾” Free Spinning, Vandal Resistant Stop Cap
• ¾” IPS Screwdriver Bak-Chek® Angle Stop
• Adjustable Tailpiece

Features:
• Dual filtered bypass, a development that will enable your flushometer to perform longer than ever before, even in water conditions with high contents of sand and other particulates.
• Diaphragm, handle packing, stop seat and vacuum breaker are molded from PERMEX rubber compound for chlorine resistance.
• ADA compliant metal oscillating non-hold open handle with triple seal handle packing.
• Free spinning vandal resistant stop cap (exposed installations).
• High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut.

EC Part Number: #85400
Mfg No.: 186-0.13
Mfg: Sloan Valve Co
